Bearings are usually called the “joints of sector.” Obtaining the option right straight impacts your tools’s dependability, life span, and maintenance expenses. Numerous bearing failures do not come from poor quality– they originate from wrong options. Points like load computation errors, overlooking rate limits, or choosing the wrong lubrication approach. These tiny errors can trigger devices to damage down early in its service life. This guide walks you through the whole choice procedure, offering designers and purchase specialists a clear path from evaluating working problems to confirming the right bearing model.
Part One: What You Required to Know Before Beginning
Prior to you open up any kind of bearing directory, ask yourself one concern: Exactly what does this machine need the bearing to do? The response lies in 5 crucial areas:
1. Tons Features
Lots is the number one consider birthing option. You require to find out three points:
Direction: Is it radial tons (perpendicular to the shaft), axial tons (alongside the shaft), or a mix of both?
Dimension: Is it light, modest, or heavy? Any kind of impact lots?
Nature: Is the tons constant or transforming? How often do impact tons take place and exactly how strong are they?
Take a belt conveyor for example. The bearings at the drive end take on radial loads from belt tension, the weight of the belt and rollers, plus the shaft setting up. When determining, you need to take into consideration various operating conditions– start-up, typical running, stopping– and make use of the worst-case scenario for your layout.
2. Rate Conditions
(bearings for steel mill)
Rate is an additional essential element affecting bearing life. According to fatigue life theory, bearing life has an inverse connection with speed. For variable rate problems, you need to calculate the equivalent rate. Take a rotary kiln support roller– its speed might range from 0.5 to 2.5 r/min. You would certainly require to weight the running time at each speed to obtain an equal value.
One point to watch out for: recognizing just the maximum rate can mess up your lubrication strategy. The lube you pick based on full throttle might not develop a correct oil film at reduced speeds. Additionally, if your maker has long still periods, you must discuss that– otherwise neighboring devices resonances can trigger incorrect brinelling damages.
3. Required Life Span
Bearing service life is normally expressed as L10h (the variety of hours that 90% of a bearing group will certainly get to before tiredness spalling appears). A typical blunder is going with an overly long life– as soon as L10h goes beyond 100,000 hours, the bearing dimension obtains too huge. It becomes tougher to oil, torque boosts, and it ends up being extra sensitive to minimal tons. In the end, it might fall short for reasons other than tiredness.
4. Area Restraints
You need to know your available area restrictions from the beginning– shaft size array, real estate bore dimension, axial size restrictions. When you understand the matching shaft diameter and available space, you can quickly narrow down your alternatives.
5. Running Accuracy Demands
The majority of applications do just fine with typical precision bearings. However, for high-speed or high-precision equipment like device tool spindles, you’ll require P5, P4, or perhaps greater grades. Simply keep in mind that opting for higher precision without an actual demand will certainly drive up costs significantly. Suit the quality to your real demands.
Sequel: Matching Birthing Types to Working Issues
When you have those specifications clear, the next action is to match the ideal bearing type based upon load direction, size, rate, and misalignment tolerance.
1. Tons Instructions: Radial, Axial, or Combined?
This is one of the most basic filter. It can point you to a few candidates today:

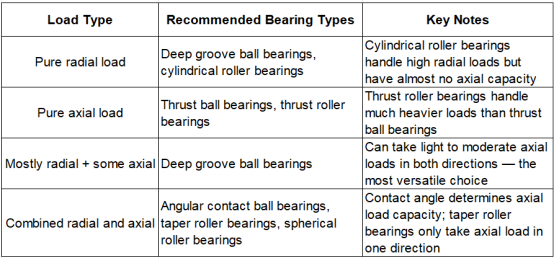

When the axial-to-radial load proportion (Fa/Fr) modifications, your selection logic adjustments as well. At low proportions, opt for deep groove ball bearings. At modest ratios, make use of small-contact-angle angular get in touch with bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or think about integrating a thrust bearing with a radial bearing.
( Radial)
2. Load Dimension: Ball Bearings or Roller Bearings?
This is a timeless selection:
Light or moderate lots: Opt for ball bearings (deep groove or angular contact). The point call in between rounds and raceways gives reduced friction, making them ideal for tool to broadband.
Hefty or impact lots: You must use roller bearings (round, spherical, or taper). Line contact between rollers and raceways supplies a lot greater tons capability and far better impact resistance.
3. Rate: Ball Bearings for High Speed, Roller Bearings for Low
Normally speaking, ball bearings have greater rate restrictions than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings on top of your checklist. When you require the highest feasible rate with pure radial load, open deep groove ball bearings are your best choice. For incorporated tons at broadband, angular get in touch with ball bearings are the method to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably reduced rate restrictions. They’re mainly fit for low-to-medium speed, heavy-load problems.
4. Misalignment Tolerance: Do You Need Self-Aligning?
This one typically gets ignored yet it’s very important. You ought to consider self-aligning bearings when:
Bearing housing bores do not line up well
The shaft isn’t rigid adequate and bends during operation
The bearing period is long and thermal expansion creates angular imbalance
You’re utilizing separate split real estates (like cushion block bearings)
Spherical roller bearings and spherical sphere bearings have concave outer ring raceways. This allows a certain quantity of angular misalignment in between the internal and external rings without unsafe edge stress and anxiety. They can make up for both dynamic deflection and fixed installation errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely minimal self-aligning capacity. Even a small angular misalignment can cause tension concentration at the roller finishes, causing high edge pressures that considerably reduce bearing life. Deep groove round bearings do have some self-aligning capacity, but the permitted angle is little– exceeding it will decrease life also.
5. Axial Growth Payment: Fixed End or Drifting End?
Long shafts increase and agreement with temperature level adjustments throughout procedure. That means you require to set up your bearing setup with one fixed end and one floating end.
NU and N collection cylindrical roller bearings have no flanges on the inner ring (or on one side). This allows the shaft move freely in the axial instructions about the housing– making them optimal as floating-end bearings. NJ and NUP collection can give axial positioning in one or both directions, so they work well as fixed-end bearings. This setup is extremely typical in transmissions and electrical motors.
Component 3: BMB Product at a Glimpse

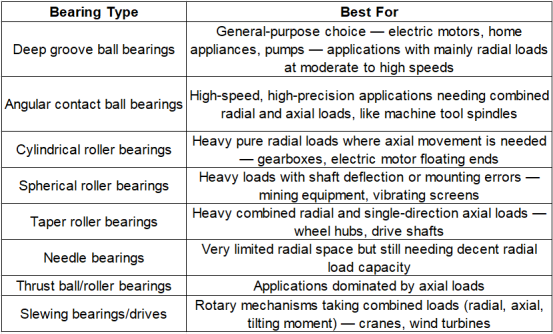

BMB supplies a full variety of industrial bearings, covering all the significant kinds we have actually reviewed. This fast reference table links the selection concepts over directly to certain item groups:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Requirement precision (P0) benefits the huge majority of general equipment. For accuracy tools like equipment tool pins or aerospace parts, you’ll require P5 or higher. Tighter accuracy means tighter dimensional tolerances and far better running precision– but likewise greater prices.
2. Inner Clearance and Preload
Bearings require to preserve appropriate inner clearance after installment. Way too much clearance causes resonance and sound. Inadequate, and thermal growth can trigger the bearing to take. In special cases like device tool spindles, preload (applying unfavorable clearance) is utilized to improve system rigidness and rotational accuracy.
3. Lubricant Selection
Lubrication is a make-or-break aspect for bearing life. Oil works for a lot of moderate-speed and temperature applications– it’s easy to seal and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates warmth better. When picking a lube, inspect the rate factor (ndm worth). Don’t simply pick based on optimum speed– the oil you select could not create an appropriate film at lower speeds.
4. Securing Program
Select the seal type based upon your environment: call seals maintain dirt out well but add some friction; non-contact seals benefit broadband but use less protection versus contamination; open bearings depend on external securing systems.
Component 5: Life Computation– From Concept to Practice
( or Combined Basic Filter Table)
At the end of the day, you require to confirm whether your picked bearing will in fact meet the anticipated life span. This is where standard ranking life calculation comes in.
The standard ranking life L10 formula (ISO 281 standard):
For sphere bearings: L10 = (C/P) SIX × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: fundamental vibrant lots rating (kN)– found in the item catalog
P: equivalent dynamic load (kN)– takes both radial and axial loads into account
The comparable dynamic lots P is calculated as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial tons
X and Y are coefficients that depend on bearing kind and the Fa/Fr proportion– check the magazine for these worths
For even more demanding problems, you can apply modification elements: Ln = a1 × a2 × a3 × L10
a1 is the integrity variable (a1 = 1 for 90% dependability, about 0.21 for 99%)
a2 is the material aspect (top quality bearing steel can reach 1.5 to 2)
a3 is the operating problems element (great lubrication and cleanliness can provide 2 to 3)
With this calculation, engineers can validate that the picked bearing satisfies the required service life. It also helps compare numerous choices and make data-driven choices.
This overview has walked you via the total option path– from examining working conditions, to matching the best bearing type, to verifying life expectancy. Understanding and applying this technique will assist you make precise, effective, and cost-efficient bearing choices throughout a vast array of commercial applications.
